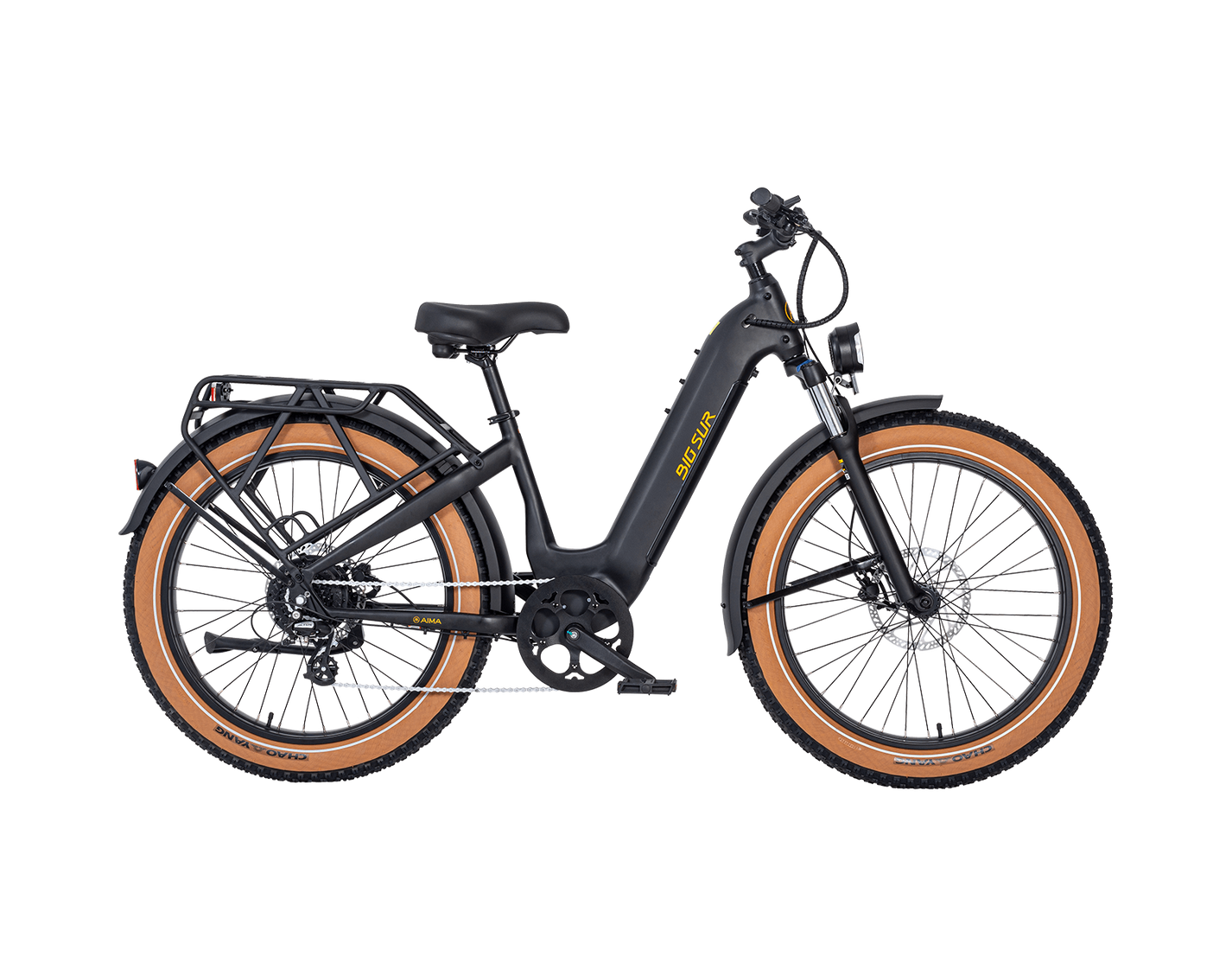

Big Sur is a 26 x 4” fat tire all-terrain e-bike, equipped with a powerful 750W Bafang rear hub motor. A specially-designed headlight, extra-large 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification make Big Sur one of the safest e-bikes on the market. Sporting a bigger 52T crankset for stability at speed and a custom AIMA Comfort XL seat with shock absorption. Big Sur provides riders with a remarkably comfortable and smooth riding experience.

E-BIKE SPECS.

-PURCHASED FROM:  TREK Bicycle Store, 701 Cervantes Street, Pensacola,FL 32501, (850)912-6858, team@trekstoregulfcoast.com

-Warranty:  2- Year

-Model:  Big Sur Model provides riders with a remarkably comfortable and smooth riding experience

-Motor: 750W, 48V, Brushless Rear Hub Motor

-Throttle:  Throttle On-Demand

-Display:  Color LCD, Smart, Easy-to-Read Display with Backlight

-Speed:  Up to 20 MPH Pedal Assisted, 20 MPH Full Throttle

-Battery:  REMOVEABLE Internal Lithium-ion, 48V, 15Ah (720Wh) with LG M50LT 21700 cells

-Rear Rack:  MIK HD

-Sensor:  Torque Sensor

-Pedal Assist:  5 PAS Levels

-Color:  Matte Black

-Range:  30-60 miles

-Frame:  6061 Single-Butted Aluminum Alloy Frame with Internal Battery

-Weight:  82 lbs (battery included)

-Pedals:  9/16” Alloy Platform

-Fork:  Suspension Fork 80mm Travel, Lockout

-Weight Limit:  400 lbs.

-Kickstand:  Aluminum Alloy Kickstand

-Crankset:  170mm with 52T Crankset for Stability

-Shifter:  Shimano 8-Speed

-Cassette:  8-Speed, 11-34T

-Brakes:  Techtro Hydraulic Disc Brakes, 203mm Rotors

-Chain:  130 Links, 8 Speed

-Rim:  Double Wall Aluminum Alloy

-Spokes:  Black, Stained, 120 Front/120 Rear

-Tubes:  Butyl Rubber

-Hubs:  Front Aluminum Alloy Disc Hub

-Tires:  26” X 4” Fat All-Terrain Tires

-Saddle:  AIMA Comfort, 280 mm/270 mm Saddle

-Seat Post:  Aluminum Alloy, 30.4 mm, 2-Bolt Clamp with shock absorbtion

-Stem:  Threadless 31.8mm, 7” rise, 75mm length
